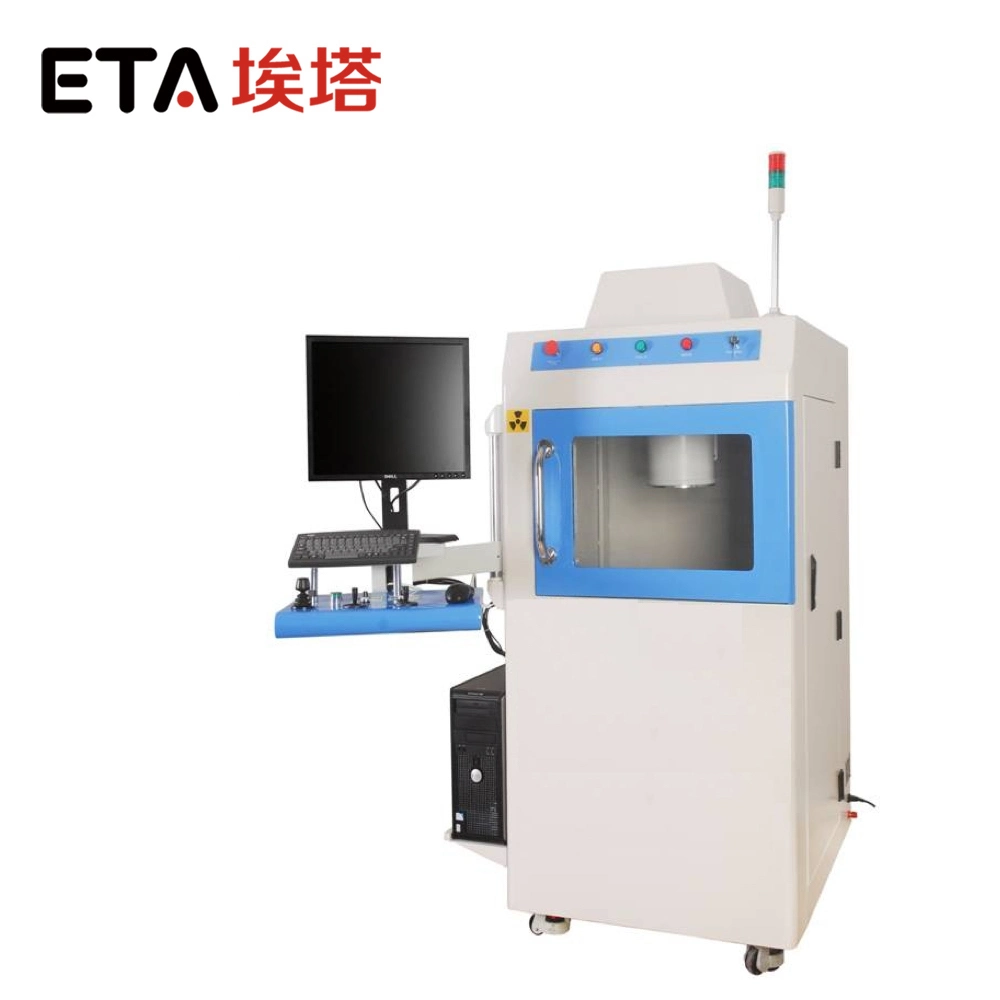

Best Quality SMT X-ray/PCB X-ray Inspection Machine

Product Introduction:

ETA-8200 is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA,CSP, QFN, Flip Chip, COB and the wide range of SMT components. Is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the xray is capable of addressing small and large volume factory requirements.(Contact us for details)

Best Quality SMT X-ray/PCB X-ray Inspection Machine

Production Features:

1. 100KV 5μm X-ray tube, image intensifier with 2 mega pixels CCD camera.
2. Multi-function workstation with ±60° "Arc" motion and X-Y multi-axis movement.
3. X-ray tube & detector automatic lifting and descending, with convenient target point positioning system.
4. Multi-function DXI image processing system, programmable detection.
5. Max. loading area 510mm*420mm , max. detection area 435*385mm,with 1200X System Magnification.

Specification:
ModelETA-8200
DimensionW1080 X D1180 X H1730 mm
Weight1000KG
Power0.5kW
X-ray Tube TypeClosed
Image Detector Resolution77/100Lp/cm
Work Station Detection Area385mm×435mm
Work Station Titing Angle±60°
Max Load Weight8KG
Operate ModeMouse , Keyboard,Joystick
