SMT digital X-ray machine type BGA X-ray inspection machine

Product Introduction:ETA-8200 is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA,CSP, QFN, Flip Chip, COB and the wide range of SMT components. Is a powerful support tool

Featured Products

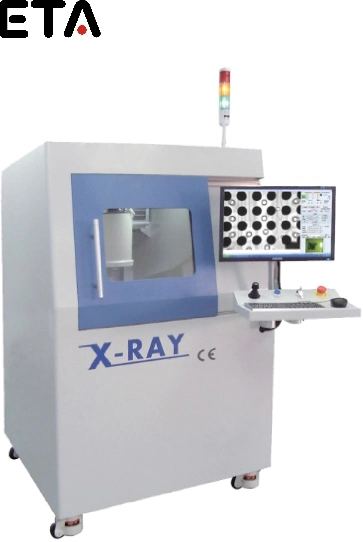

SMT Digital X-ray Machine Types BGA X-ray Inspection Machine

Product Introduction:

ETA-8200 is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA,CSP, QFN, Flip Chip, COB and the wide range of SMT components. Is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the xray is capable of addressing small and large volume factory requirements.(Contact us for details)

SMT Digital X-ray Machine Types BGA X-ray Inspection Machine

Production Features:

1. 100KV 5μm X-ray tube, image intensifier with 2 mega pixels CCD camera.
2. Multi-function workstation with ±60° "Arc" motion and X-Y multi-axis movement.
3. X-ray tube & detector automatic lifting and descending, with convenient target point positioning system.
4. Multi-function DXI image processing system, programmable detection.
5. Max. loading area 510mm*420mm , max. detection area 435*385mm,with 1200X System Magnification.

Specification:
ModelETA-8200
DimensionW1080 X D1180 X H1730 mm
Weight1000KG
Power0.5kW
X-ray Tube TypeClosed
Image Detector Resolution77/100Lp/cm
Work Station Detection Area385mm×435mm
Work Station Titing Angle±60°
Max Load Weight8KG
Operate ModeMouse , Keyboard,Joystick

Company Information:

SMT Digital X-ray Machine Types BGA X-ray Inspection Machine
ETA is the leading SMT factory solution provider in China ,offering professional SMT factory building advice and service.We have 22 years experience about SMT factories,offering full solution for global clients with our advantaged sources in China. Our core technology team members are all from Foxconn,Huawei,Siemens and other companies,we not only provide a full set of equipments,we also provide full smt technical support and services,Besides we give customers more reasonable and professional suggestions.We have already helped many customers to establish factories in LED, TV, Phone, DVB, EMS and other filed around the world ,we are worthy of trust!

Main Products: SMT LED Pick and Place Machine,SMT LED Reflow Oven,SMT LED Stencil Printer,SMT Production Line,LED Assembly Line,SMT LED Machine.

Successful Experience:
1.We have been helping customers to build a lot of new factories around the world.
2.Training more than 500 experts and technician for customers.
3.Became the most reliable Chinese partner for you.


SMT Digital X-ray Machine Types BGA X-ray Inspection Machine
SMT Digital X-ray Machine Types BGA X-ray Inspection Machine

Certifications:
SMT Digital X-ray Machine Types BGA X-ray Inspection Machine

Our Service:

A. Pre-consultation:provides professional SMT solution for the full line.

B. Factory Warranty:One-year warranty factory service.

C. Installation:On-site installation and commissioning,to ensure smooth production.

D. Technical Training:provides professional training from level 1 to level 3.

E. Technical Support:provides 7 days * 24 hours technical support.

F. Software Upgrade:offers lifetime free software upgrades from all products.
SMT Digital X-ray Machine Types BGA X-ray Inspection Machine
SMT Digital X-ray Machine Types BGA X-ray Inspection Machine
Eta's customer in 35 countries around the world
1.We have been helping customers to build a lot of new factories around the world.
2.Training more than 500 experts and technician for customers.
3.Became the most reliable Chinese partner for you.


Our Team:

SMT Digital X-ray Machine Types BGA X-ray Inspection Machine

Packing & Delivery:

SMT Digital X-ray Machine Types BGA X-ray Inspection Machine
SMT Digital X-ray Machine Types BGA X-ray Inspection Machine

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
