Supermarket X-ray scanner 6040 X-ray screening system

600*400mm Tunnel Size X-ray Baggage and Luggage Airport Security Inpection Scanner X Ray Introscope machine with UK Detector Board  AT6040B X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for se

Featured Products

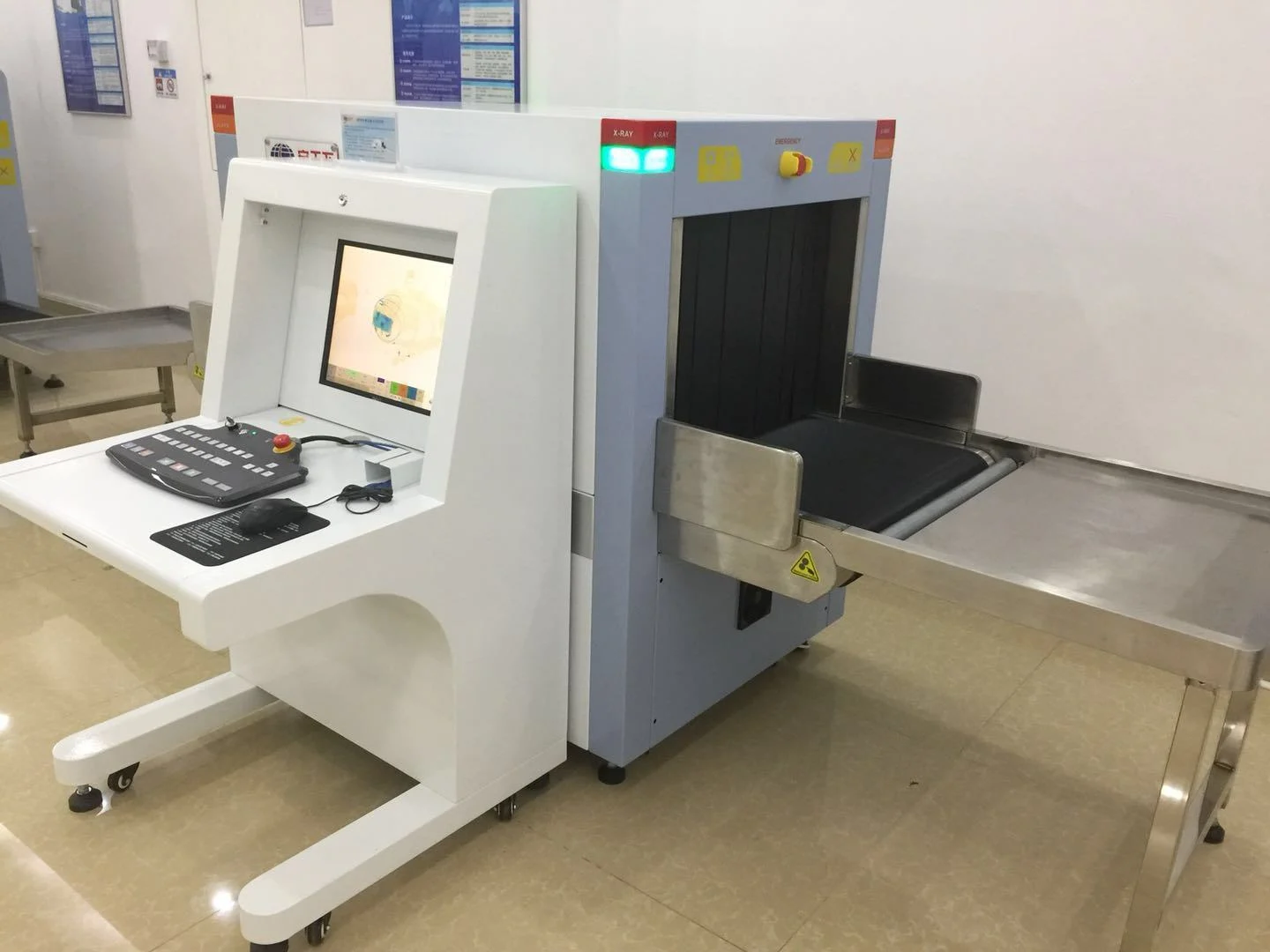

600*400mm Tunnel Size X-ray Baggage and Luggage Airport Security Inpection Scanner X Ray Introscope machine with UK Detector Board

 AT6040B X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.


AT6040B is totally designed and manufacturer by our own company. Every year, we invest a large amount of labors and resources in the development of new technology and models. We own all the copyrights and patents, from the outlook design to the software. Safeway system is the market leader and one of the very few companies in China who can creat the new things instead of COPY.

AT6040B is equipped with UK detector board and 140kv generator, windows system, which is the most stable and high quality for small size baggage scanners.

Also it can be with 160kv generator for better penetration ability.

With its mordern design and high stable quality, it is one of the most popular model among our product line.




-------------------------------------------------------------------------------------------------------------

Product highlights

* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter



Advantages
  • Comprehensive leadership: Product performance of International first-class level, high-definition images, strong penetration, high resolution, and powerful material identification.

  • Unique system: with embedded windows operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.

  • Safety and environmentally friendly: The equipment meets safety and environmental standards.

  • Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system. Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10,000 hours without failure.

Physical Specifications
Unit weight (kgs)455
Unit size (mm)2007(L)*868(W)*1314(H)
after packed in wooden pallet -
Gross weight (kgs)500
Packing size#1: 212*101*156cm
 #2: 87*87*141cm

General Specifications
Tunnel size(mm)615(L)*418(W)
Conveyor Speed(m/s)0.22
Conveyor height(mm) 680
Conveyor Max Load(kgs)150
X ray dose per each inspectionTypical 2.5 μGy/h, guarantee 3.5 μGy/h
X ray leakage Typical1.0 μGy/h, guarantee 1.5 μGy/h
PenetrationTypical 38mm, guarantee 34mm
Wire ResolutionTypical AWG40, guarantee AWG38
Penetration ResolutionTypical AWG34, guarantee AWG32
Spatial resolution:Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.0mm,Vertical: dia1.0mm;
Power Consumptionmax. 0.8KW
Noise< 60 dB
Film SafetyGuarantee ASA/ISO1600 Film

X-ray Generator (single)
Anode Voltage140-160 KV
Anode Current600μA(0.6mA)
Generate angle80 degree upward
Generate directfrom bottom to top
Cooling / Duty CycleOil Cooling /100%
Brandlocal made

Image System
X-ray SensorL-Shaped Photodiode Array (multi-energetic)  , 12bit Deep
Image DisplayHigh resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall All preceding images recallable, retrieval
Explosives & Narcotics DetectionExplosives & narcotics alarm and highlight according to atomic number signature
High Density Region AlarmImpenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image ProjectionInserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image ArchiveUp to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous FunctionsTime/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network ApplicationsMultiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Operating Environment
Operation temperature/Humidity 0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity -40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional

Computer and other
MonitorHigh Resolution Color, LCD Accord, 17inch
Hard DiskSEAGATE 500G 3.5"
CPUG1610 2.6G
Storage2GB 1600MHz DDR3 Innodisk
Main boardH61 SYM76993VGGA

Compliance
International * ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE
* USA FDA
* Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China)* Health Inspection Report
* Computer Software Copyright Registration Certificate
* Software Product Registration Certificate
* Radiation Safety Certificate from Ministry of Public Security
* Quality Certification from Safety and Police Electronic Products Quality Inspection Center
* Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0
