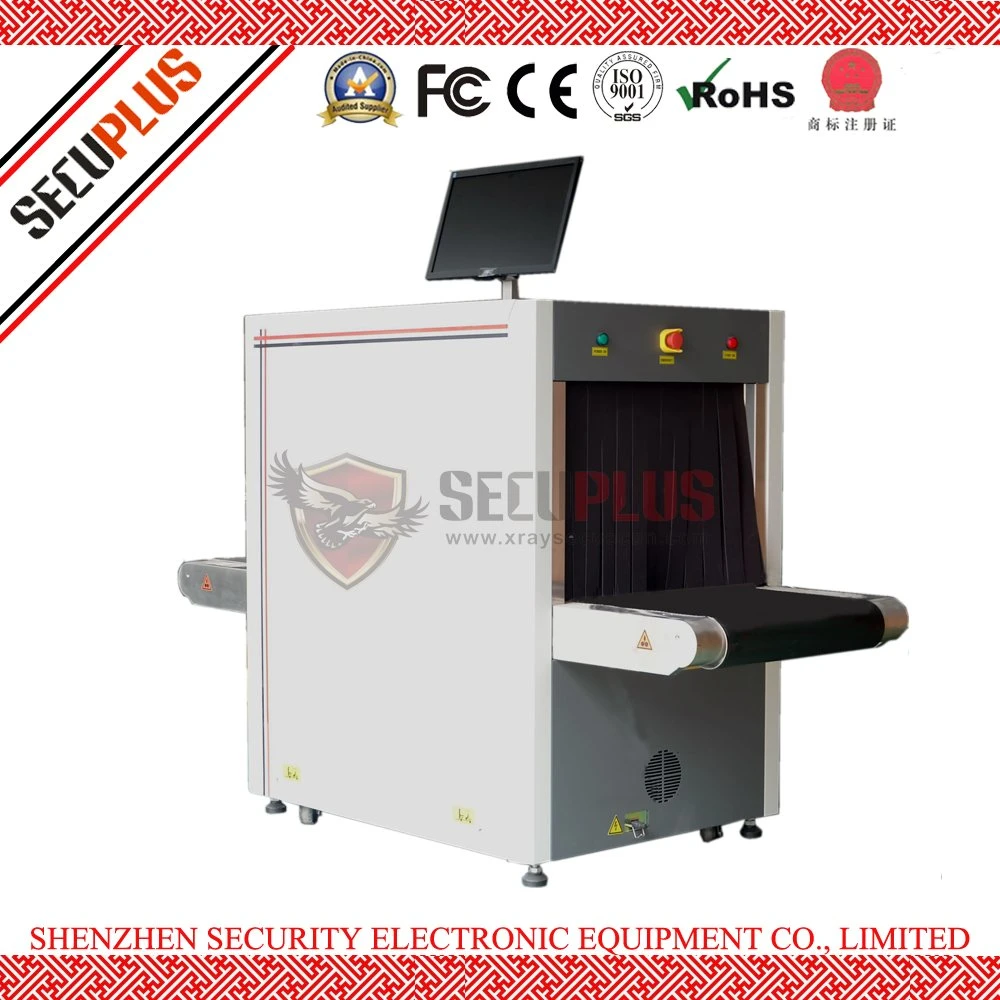

3D perspective X-ray screening scanner system x ray Introscope for law enforcement (SPX-6040)
Medium Size X-ray Introscope Bag Screening Device for Hospital, Prisons
Product highlights:
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Continuous working 10000 hours above
* Threat alert and material classification
* International standard configuration:
Japan Hammatsu detection and UK Sens-tech board
* Network‐Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
RFQ:
Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.
How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.
How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
SECUPLUS Specialized in producing:
Medium Size X-ray Introscope Bag Screening Device for Hospital, Prisons
Core Features:
Automatic detection alerts the operator of the presence of potential threats or contraband, including prohibited organic material, explosives, high density, sharp objects (and more.) The list of materials can be completely customized to your needs with a combination of atomic number and density to highlight objects that are:- Organic: anything with a carbon base (clothing, food, water, paper, etc.)
- Inorganic: anything metallic (cell phone, knife, firearm, etc.)
- Mixed: a combination of Organic/Inorganic recognition.
| Competitor 2D Scan | Our 3D Perspective™ |
| 2d Scanners: Unable to detect all concealed objects due to dangerous blind spots | No Blind Spots: We eliminate blind spots and allow operators to quickly identify threats. |
| Images: Images produced are flat files and cannot be manipulated further in the future. | Images saved in raw format: This is so you can rescan them and analyse them as though the items were back in the machine. |
| Competitors will say: ``True 3D scanners are expensive, large and slow to produce images`` | Same price as a 2D! We provide the benefits of a dual view system at the price of single view. |
General Specifications:
| Tunnel size | 600*400mm (W*H) |
| Conveyor speed | 0.20m/s, bi-direction scan, |
| Conveyor height | 693mm |
| Max Load | 170kgs |
| Wire Resolution | 38AWG standard, 40AWG typical |
| Spatial resolution | Vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 34mm steel panel |
| Monitor | 1 piece 21.5 inch,High resolution 1280*1024 |
| X Ray generator anode voltage | 160KV (Working at 150KV) |
| Cooling/operation cycle | Oil Cooling /100% |
| Image processing | color/black & white image,Negative Image, High Penetration, Low penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image,Pseudo color, 90-degree rotation images, organic/in-organic stripping |
| Zoom | Variable zoom up to X64, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100,000 image |
| Radiation leakage | <1 USv/h (5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count,User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, voltage stabilizer, UPS back up |
| Frame size | 2043*901*1384mm (L*W*H) |
| Weight | 500kg |
| Environment temperature/humidity | - 10ºC~+45ºC / 5%~95%(non-condensing) |
| Storage temperature/humidity | -40ºC~+60ºC / 5%~95%(non-condensing) |
| Power | 220VAC (+/-10%) 50/60HZ |
| Consumption | 0.7KVA |
| Noise Level | <55db |
| Computer | Inter Celeron(R) CPU 1037U @1.8Ghz; Memory (RAB) 2G; 465GB hard disk |
Product highlights:
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Continuous working 10000 hours above
* Threat alert and material classification
* International standard configuration:
Japan Hammatsu detection and UK Sens-tech board
* Network‐Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
RFQ:
Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.
How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.
How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
SECUPLUS Specialized in producing:
| Description | Function |
| X-ray baggage scanner | For inspecting the baggage with threats in airport |
| Walk through metal detector | For inspecting the threats hidden in pocket. |
| Explosive trace detector | For inspecting the body bomb |
| Dangerous liquid scanner | For inspecting the dangerous liquid in bottle and can |
| Under vehicle surveillance system | For surveillance the beneath of vehicle when they pass through the entrance |
