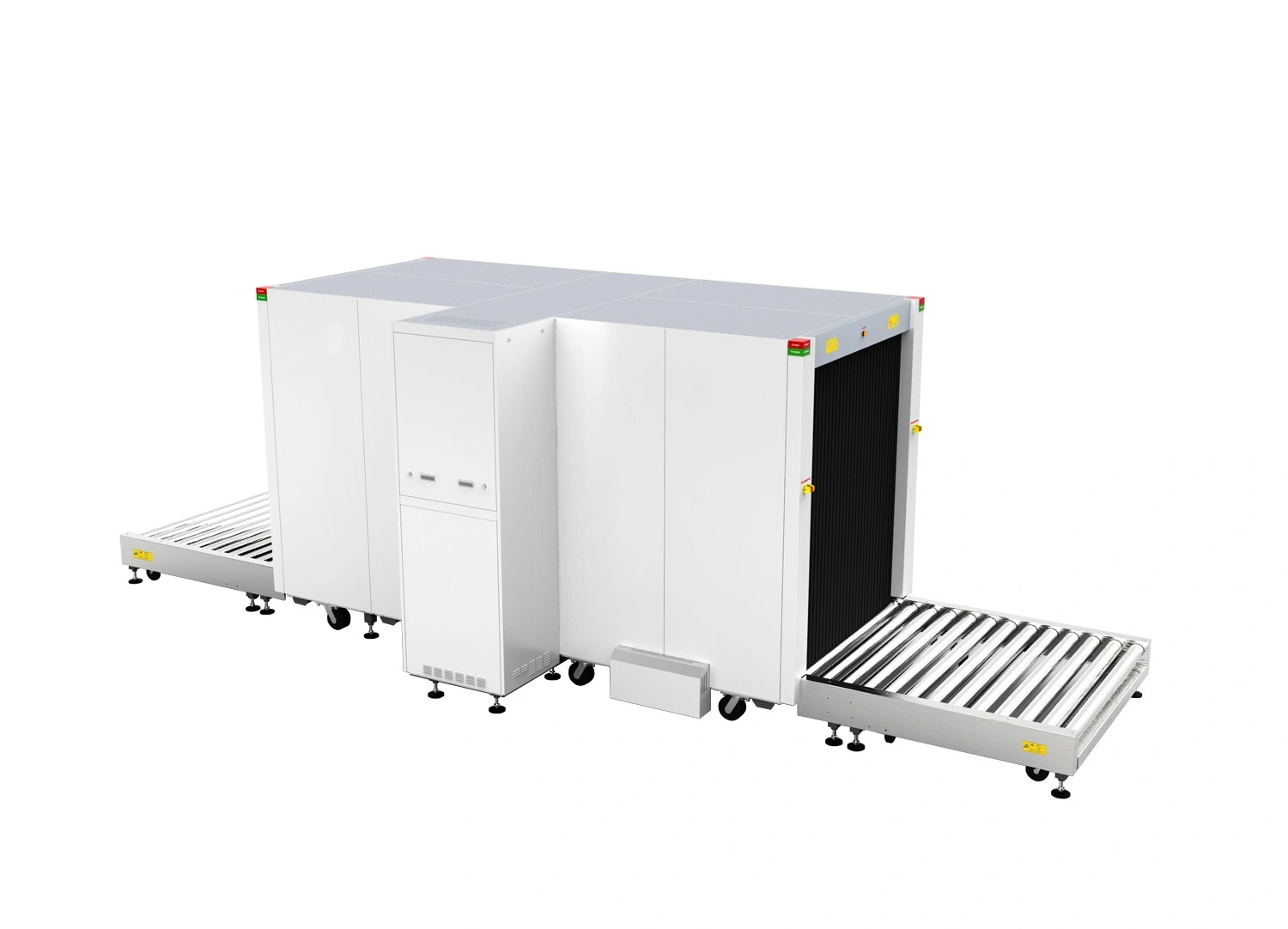

Abnm-200200 X-ray Baggage Scanner

General Specification
Tunnel Size: 2000(W)*2000(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 2000kg
Dose per Inspection<1.7| Gy/h
Resolution< 0.101mm Copper Wire
Spatial resolution: Level: dia1.3mm, Vertical:dia1.0mm
Penetrate resolution: Dia 0.511mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage <0.1 | Gy/h (at a distance of 5cm From external housing)

X-ray Generator
Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 140~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%

Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096 Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 100000 pictures in real time
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder

Installation Data
Operation temperature/Humidity: 0ºC-45ºC/20%-95%(non-condensing)
Storage Temperature/Humidity: -20ºC-60ºC/20%-95%(non-condensing)
Operation Power: 220VAC( 10%)50 3Hz
Power Consumption: 1.0 KW (max), 1.0KW(working)
Noise: <58db
