X ray Baggage Inspection Scanner to scan documents, laptop in office, government

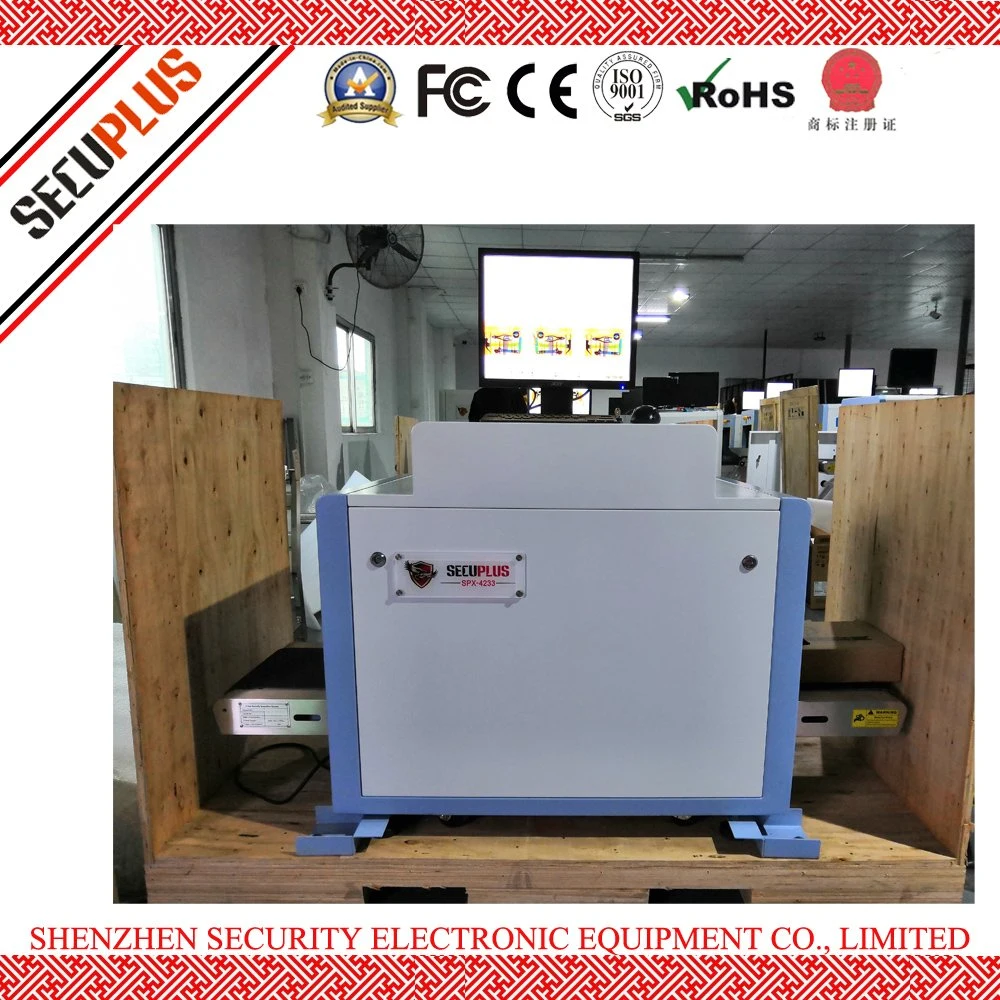

The multi-energy SPX-4233 is our space-saving colour mailroom cabinet x-ray scanner for checking bundles of letters, documents and small packages. Screening your mail with SPX-4233 helps safeguard your staff and company against the disruption, damage and injury created by postal threats and ensures your duty of care to mailroom employees.
Its compact size allows you to site it on a standard desk-top or under a desk or mailroom bench making it ideal for locations where space is limited.
the SPX-4233 meets the throughput demands of high-traffic settings. An intuitive operator interface makes the system suitable for security professionals and operators who may not have technical backgrounds.
General Specifications:
We strive to bridge the gap between requirements and technology worldwide with practical, innovative and high technology readiness solutions. The future, we want to become the leading supplier of large-scale security equipment industry, with our products help to achieve the 'Safer country, Safer world. "
The multi-energy SPX-4233 is our space-saving colour mailroom cabinet x-ray scanner for checking bundles of letters, documents and small packages. Screening your mail with SPX-4233 helps safeguard your staff and company against the disruption, damage and injury created by postal threats and ensures your duty of care to mailroom employees.
Its compact size allows you to site it on a standard desk-top or under a desk or mailroom bench making it ideal for locations where space is limited.
the SPX-4233 meets the throughput demands of high-traffic settings. An intuitive operator interface makes the system suitable for security professionals and operators who may not have technical backgrounds.
General Specifications:
| Tunnel size | 420*330mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 272mm |
| Max Load | 100kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 14mm steel panel |
| Monitor | 17 inch,High resolution 1280*1024 |
| X Ray generator anode voltage | 160KV (Working at 150KV) |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | < 1.14 USv |
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to X64, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 image |
| Radiation leakage | <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Frame size | 1810mm x668mm x890 mm |
| Weight | 250kg |
| Environment temperature/humidity | - 3ºC~+40ºC / 5%~95%(non-condensing) |
| Storage temperature/humidity | -43ºC~+60ºC / 5%~95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.7A |
| Noise Level | <55db |
RFQ:
Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.
How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.
How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
