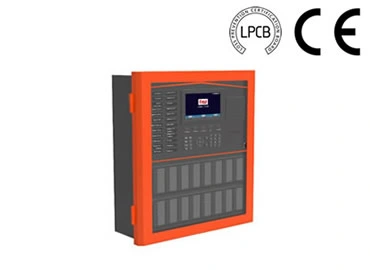

Support 254 wired equipment intelligent addressable fire alarm security system

Feature and BenefitsCertified EN54-2:1997 +A1:2006, EN54- 4:1997 + A1:2002 + A2:2006LPCB ApprovedUsing advance microprocessor technology with Large memory capacityEnhance user interface combining LCD Touch screen and keypad accessSupport real time vi

Featured Products

Feature and Benefits

  • Certified EN54-2:1997 +A1:2006, EN54- 4:1997 + A1:2002 + A2:2006
  • LPCB Approved
  • Using advance microprocessor technology with Large memory capacity
  • Enhance user interface combining LCD Touch screen and keypad access
  • Support real time visual algorithm
  • Enhance false alarm prevention
  • Keypad and PC programming
  • Built-in Multiple interface protocol such as USB/Ethernet/CanBus/ Serial/RS485/Fiber Optic
  • Support Loop Powered devices for extra saving on cable cost
  • Built-In Printer and 30 LED Zones Indicators
  •

Commissioning Advantage

  • Auto Enrolling of Devices
  • Loop Mapping with colour coding status
  • Command Builder to create requirements for fire event scenario
  • With Loop protection against power surge
  • One-man test with On/Off sounder Programming Protection

System Capacity

  • 1 and 2 loop Panel
  • Support 254 Devices per loop
  • Network up to 512 Node
  • Programmable Capacity
  • Zones up to 3000
  • Sounders Groups 1-1000
  • Modules Groups 1001- 2000
  • Built-in 160 LED Zones Indicator

Technical Specification

Listed: LPCB / CE-CPR
Certified: EN54-2:1997 +A1:2006, EN54-4:1997 + A1:2002 + A2:2006

Power Rating

Input Voltage100-240VAC +10%-15%, 50/60Hz
Network panel to panel128 panels Can Bus[Loop]
Communication PortUSB port (Use for programming)
Communication CardUSB, RS485 Serial, RS232 Serial, Ethernet(Model NC7004, Optional )


Networking and Interfaces

Panel to panel communicationCan Bus [loop]
Number of Panels512
Interface PortUSB, RS485 Serial, RS232 Serial, Ethernet

Input/outputs

Programmable Relays 2 circuits: Normally Open/Close
Programmable Input 1 Circuit: Power limited 24Vdc (for future use)
Programmable Auxiliary Power19 to 28 VDC (Note: Current Limited)
Fixed Outputs (FPE/Sounder) 1 Circuits: 18 t0 28 VDC (Note: Current Limited)
Indicator 24 LED Status/ 30 Zone Indicators
Display7" TFT Touch Screen
Keypad5 Brigade buttons and Programming Keypad
Material / ColorFlat sheet Metal, Dark Gray with Orange stripe
Dimension(Lx W x H ) 460 mm x 440 mm x 150 mm
Weight16.70 Kg
Humidity0 to 95% Relative Humidity, Non condensing
