Security equipment wireless home anti-theft anti-theft GSM alarm system

GSM Touch Home Security Intruder Alarm System: ZUDSEC ZDAS-X5G is an innovative & unique design, which combines powerful multi-functions: GSM Network Technology;  2-way intercom; 24 Wireless Zones + 4 Wired Zones, Support IOS & Android APP control, Smart home application; Support IP Camera & Pick up ph

Featured Products

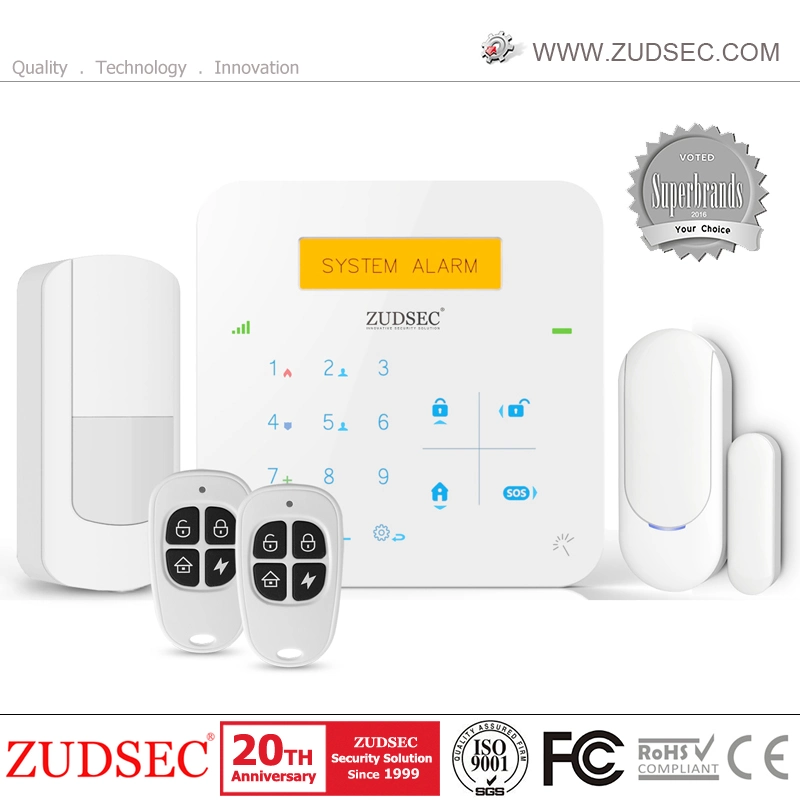

GSM Touch Home Security Intruder Alarm System: ZUDSEC ZDAS-X5G is an innovative & unique design, which combines powerful multi-functions: GSM Network Technology;  2-way intercom; 24 Wireless Zones + 4 Wired Zones, Support IOS & Android APP control, Smart home application; Support IP Camera & Pick up phone calls; Touch Keypad, Big LCD display with Calendar; Menu operating interface;  "Black Box"  event logs; SOS alarm; Exit & Entry delay;  Have a built-in siren & rechargeable battery; Compatible with format of communication: ADEMCO CONTACT ID .

Features:
- GSM wireless network.
- Touch keypad + LCD Screen; Bule back-up light
- Menu operating interface for local programming and user activity, Provides clear understanding of system status and zone locations
- Support iOS & Android APP control
- Support 24 wireless zones, 4 wired zones;
- Intelligent door sensor with Open/Close signal;
- Remote monitoring and Voice-message recording
- Automatically dial 5 alarm phone numbers and 1 CMS number when danger;
- Advanced zone attribute, user-friendely zone name, every zone type can be seperately programmed.
- Alarm memo, entry delay, exit delay
- Built-in Speaker & Microphone, support 2-way intercom
- Support IP Camera & Pick up phone calls
- Support wireless LCD/LED keypad and wireless siren.
- Built-in Li-lon backup battery can work for 8 hours in case of no electricity supply, it will alert when low power or external power failure/ recover
- Support ADEMCO Contact ID protocol

Security Guard Equipment Wireless Home Burglar Anti-Theft GSM Alarm System


Specifications



Alarm communications: Transmitting alarming signal by GSM dialing
Alarm communication protocol: ADEMCO Contact ID
Support GSM frequency: GSM850/900/1800/1900MHZ (Quad-Band) applicable for universal.
Wireless frequency: Available in 315MHz/433MHz
Oscillation Resistance: 1.5MΩ /3.3MΩ /4.7MΩ optional
Touch Keypad: Capacitive touch screen
Protection zone:  30 wireless zones, 4 wire zones
Working power voltage: Input: AC 110~220V 50-60Hz; Output: DC12V /1A
Static current: <35mA; Alarm current: <120mA;
Built-in Li-ion backup battery: 3.7V,800mA,
Coding type: learning code
Wireless receiving distance in open place: >200m, indoor: 30~50m, (depend on the surrounding environment and wireless interference)
Alarm volume: internal :45dB, external siren: 110~120 dB
Communication protocol: Ademco Contact ID
Working temperature: -20 ~ 55°C ; Working Humidity: 40 ~80%
Packing box: 19*18*9.2cm Weight: 1.5kg / kit
