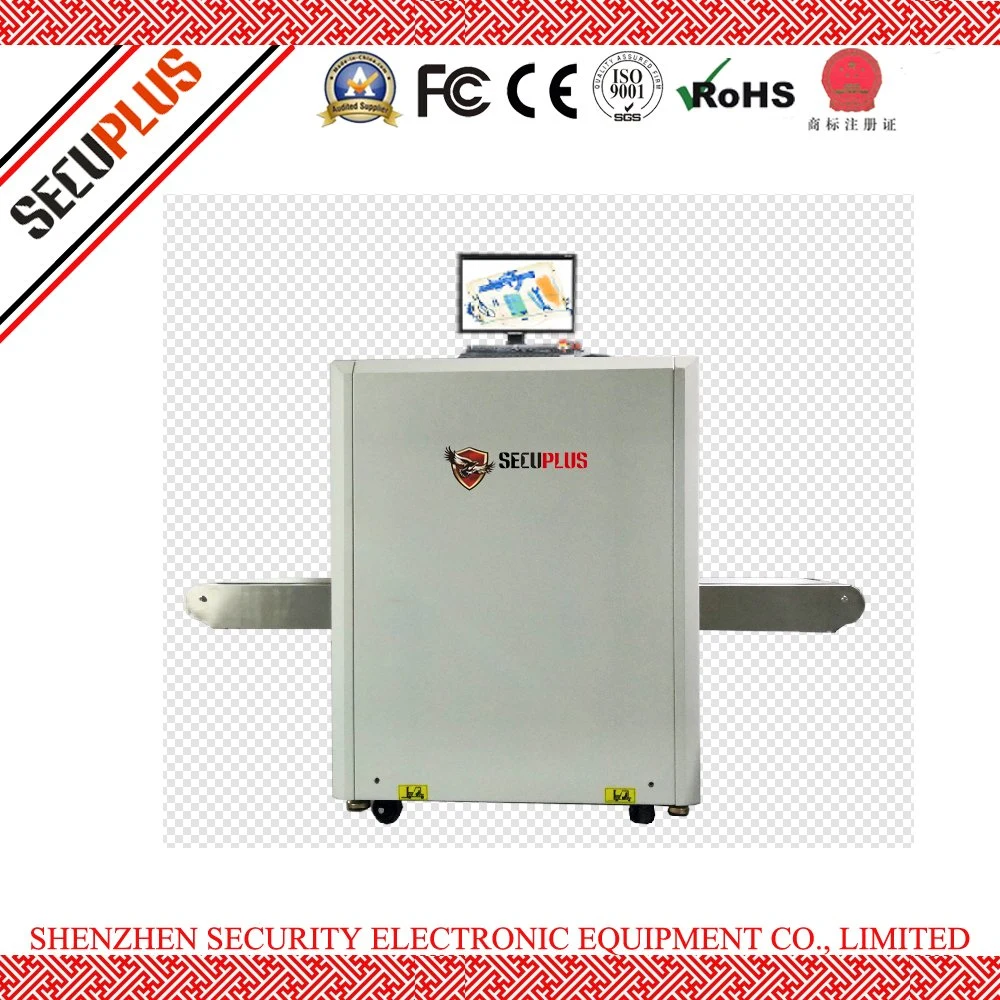

Russian Software X-ray Introscope System for Train Station, Airport
High Light:
We strive to bridge the gap between requirements and technology worldwide with practical, innovative and high technology readiness solutions. The future, we want to become the leading supplier of large-scale security equipment industry, with our products help to achieve the 'Safer country, Safer world. "
High Light:
- Powerful image dealing ability;
- Accurate Z7,Z8,Z9 mark for explosive and narcotics;
- Windows 7 operation system;
- Automatic save scanned image;
- Friendly operation System;
- Reliable performance.
- Dural energy penetration system;
- TIP program;
- Clear and distinct image;
- Scanned imaged can zoom up to 64 times;
- Partly zoom up to 3 times;
- 13 kinds of image processing functions and 6 kinds of pseudo color;
- Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
- Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.
| Tunnel size | 600*400mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 150kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 35mm steel panel |
| Monitor | 21.5 inch,High resolution 1280*1024 |
| X Ray generator anode voltage | 160KV (Working at 150KV) |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | < 1.14 USv |
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to X64, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 image |
| Radiation leakage | <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Frame size | 2043*901*1384mm (L*W*H) |
| Weight | 500kg |
| Environment temperature/humidity | - 3ºC~+40ºC / 5%~95%(non-condensing) |
| Storage temperature/humidity | -43ºC~+60ºC / 5%~95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.7KvA |
| Noise Level | <55db |
RFQ:
Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.
How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.
How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
