Iwildt - AN 200200 gantry type security inspection machine cost-effective customized X-ray detection imaging scanning security inspection equipment.

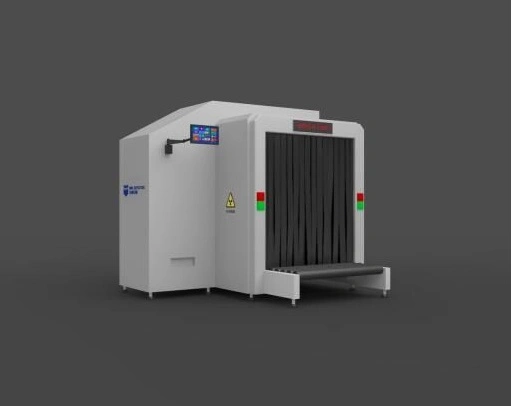

60mm Steel Plate Penetration Iwildt- an 200200 Gantry Type Security Inspection Machine

IWILDT (-AN 200200) is a high cost-effective customized X-ray detection imaging scanning safety inspection equipment.With the most advanced X-ray detector and computer technology, the system conforms to the advanced solution of aviation safety inspection.

X-RAY Features:

1.IWILDT (- AN 200200) allows operators to customize functional usage configurations and image management functions.

2.IWILDT (-AN 200200) is an important department for airports, customs stations, port terminals, logistics express delivery, border troops, factories and enterprises, and other public places. It is mainly used to detect prohibited items hidden in large cargo, parcels and other items, such as explosives, drugs, weapons of mass destruction (WMDS) and guns, knives, detonators, fireworks and other threats.

3.IWILDT (-AN 200200) adopts advanced X-ray low-dose penetration scanning technology. The penetration force can reach 60 mm steel plate. It can pass through 500 kg cargo with a box size less than 2000 (H)*2000 (W) mm.


Product Description

Ray source:Film safety: ISO1600 film safety;
Penetration force: 60mm steel plate;Line resolution: 0.0787mm diameter single solid copper wire;
Tube voltage: 200 KV (adjustable);Penetration resolution: 0.127mm diameter single solid copper wire;
Tube current: 0.8-1.8 mA (adjustable);Spatial resolution: horizontal: 1.0 mm in diameter, vertical: 1.0 mm in diameter;
The divergence angle of the beam is 80 degrees.Leakage dose: <0.09uGy/h;
Heat dissipation mode: oil immersion type;Power loss: 2.0KW (maximum);
Radiation protection: 6mm thick lead plate;Operating voltage: 220VAC (+10%) 50+3Hz;
Scattering angle: 90 degrees;Energy-saving and environmental protection design: Lead curtain is coated with protective film to avoid lead pollution to human body and prolong the service life of equipment;
Control mode: RS232 serial communication code control;Diagnostic function: automatic judgment in case of failure, prompt information in time, easy to maintain;
Collimator: Ultra-narrow slit out beam;Detection and alarm: drug explosives and liquid-assisted detection and alarm; some typical drug explosives and liquid appliances and other possible dangerous goods automatic alarm;
detection systemUnique function:

Structural design: modular, compact structure;
Date and time display, working status, image microdisplay, operator identification code, baggage count, emergency stop, power on self-diagnosis function, network interface, system work and X-ray emission timing;
Color painting: grey, white and blue;Execution standard: ISO 9001 ISO14001 ISO1600 film safety;
Detection crystal: GSI;Execution standard: ISO 9001 ISO14001 ISO1600 film safety;
Photoelectric conversion: CMOS;king temperature/humidity: - 10 ~55 ~20%~95% (without condensation);
Pixel Arrangement: L-shaped Line Array;Noise level: < 74dB;
Communication interface: RJ45 communication mode;Machine size: 5200 (L) * 2200 (W) * 2500 (H) mm;
image processingWeight: 460 kg*approx.460 kg;
Multi-energy penetration function, organic matter removal function (1abc), organic matter only display function, image enlargement function (a.z), image inversion function, image integrity function (6pqr), image penetration enhancement function (super-strong), image pullback function, continuous scanning function (7stu), dangerous goods electronic image insertion function (TIP), image recognition training function.Maximum load of conveyor belt: 580Kg;
Continuous scanning function: Ultra-thin object detection, providing X-ray continuous scanning function.Line resolution: 0.0787mm diameter single solid copper wire;
Image Preservation: Automatically save all scanned images of inspected items, and store no less than 100,000 images.Penetration resolution: 0.127mm diameter single solid copper wire;
Image retrieval: The device may be able to perform image retrieval according to the combination of image scanning time, operator ID, image preservation mode and other conditions.Spatial resolution: horizontal: 1.0 mm in diameter, vertical: 1.0 mm in diameter;
Standby state: When the equipment is not operating within the set time range, the equipment can automatically enter standby state.Conveyor belt speed: 0.22m/s;
Standby Recovery: The device can be manually restored to working state from standby state, and can require input user name and password for verification.
Baggage counting function: After the recording equipment is put into use, the checked luggage can not be reset.

Channel size: 2000 (wide) 2000 (high) mm;
Other functions: system log, networking function, one-key shutdown function, network interface remote control function, baggage count, maintenance diagnosis, interlocking function, operator identification program function.


Equipment performance
